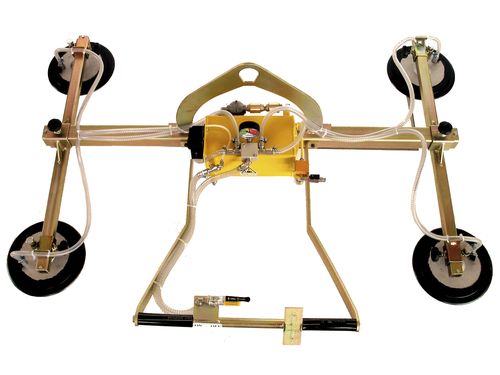

Sheet metal vacuum lifting device VLA4F series

sheet metal vacuum lifting device
sheet metal vacuum lifting device
Add to favorites
Compare this product


Characteristics

Product applications
for sheet metal
Carrying capacity

Max.: 500 kg
(1,102 lb)

Min.: 250 kg
(551 lb)

Number of cups

4 unit

Description

Our vacuum lifters for handling sheet metal are built with four, six and eight suctions pads and lifting capacities ranging from 250 to 1500 kg. These consist of: * A metal structure with fixed horizontal steel section main frame, featuring suction pads with longitudinal and transverse adjustment * Vacuum pump: electrically-driven (380V three-phase or 220V single-phase) on GLA models and powered via compressed air on VLA models * Vacuum reservoir tank ensuring safe pickup even in the event of unexpected vacuum pump power failure * Acoustic and visual alarm system powered independently by a rechargeable battery * Pickup handle featuring material grip and release controls.
