STANDARD EXECUTIONS

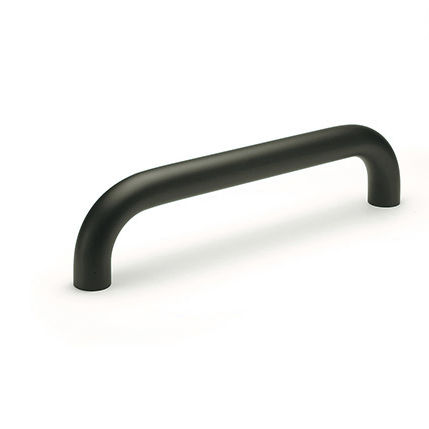

- GN 426-AL-20: aluminium bar Ø 20 mm, threaded blind holes.
- GN 426-AL-28: aluminium tube Ø 28 mm, thickness 4 mm.
Aluminium bosses in the tube, threaded pass-through hole.
Surface finish index:
- SW: epoxy resin coating, RAL 9005 black colour, matte finish.
- WSA: antimicrobial epoxy resin coating, RAL 9002 white colour,
matte finish.
- GN 426.5-20-A: AISI 304 stainless steel bar Ø 20 mm, sandblasted
matte finish. Threaded blind holes.
- GN 426.5-28-A: AISI 304 stainless steel tube Ø 28 mm, thickness 2
mm, sandblasted matte finish
AISI 304 stainless steel tapped bosses in the tube.
SPECIAL EXECUTIONS ON REQUEST
- Different lengths.
- GN 426-SR: executions with epoxy resin coating, RAL 9006 grey colour,
matte finish.
- GN 426.5-B: for assembly opposed to the standard execution.
