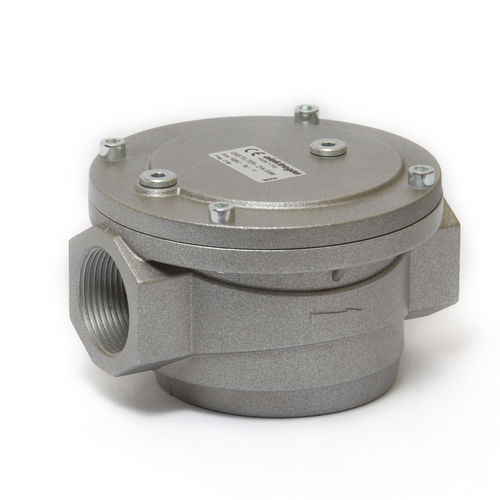

gas filter / cartridge / dust / pressure
ELEKTROGAS FG Elettromeccanica Delta S.p.A.

Characteristics

  • Designed for:

    gas

  • Filtration element:

    cartridge

  • Other characteristics:

    dust, pressure

  • Filtration size:

    5, 50, 30

  • Operating pressure:

    Max.: 6 bar (87.02 psi)

    Min.: 0 bar (0 psi)

  • Flow rate:

    Max.: 1120 m³/h (39552.43 ft³/h)

    Min.: 6.8 m³/h (240.14 ft³/h)

Description

Gas filters

Filters for gas pipelines with very high holding capacity of dust and impurities, suitable for protection of devices installed downstream.
The filter cartridge is a steel supported frame covered with a high performance nonwoven made of polypropylene fibres, which satisfy the stringent requirements of Fire Class F1 according to DIN 53438 and thus are self-extinguishing.
Inlet and outlet pressure chambers can be provided with gauges, to connect a gas differential pressure switch to monitor the pressure difference.
When the dust storage capacity is exceeded, the filter element must be replaced.
FGS1-2 models are provided with a washable mesh filter cartridge.

Material/Connections
AlSi Rp1/2 Rp2
DN65 DN300

Operating pressure
0 2 bar
0 ... 6 bar

Gas type
Air and non-aggressive gases
(Family 1-2-3, EN 437)
Special version for
Biogas/COG

Approvals
Tested and certified according to 97/23/EC
