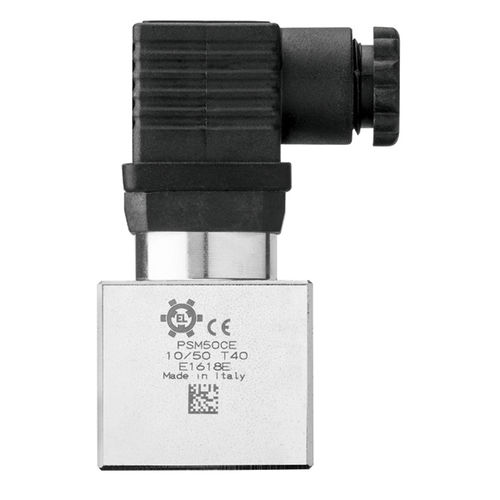

diaphragm pressure switch / adjustable / IP65
PSM-PSP-CE ELETTROTEC s.r.l.

{{requestButtons}}

Characteristics

  • Technology:

    diaphragm

  • Other characteristics:

    adjustable, IP65

  • Process temperature:

    Min.: -30 °C (-22 °F)

    Max.: 140 °C (284 °F)

  • Pressure range:

    Min.: 0.2 bar (2.9 psi)

    Max.: 30 bar (435.11 psi)

Description

Switch rating6(2)A / 250Vac
Electrical connection DIN 43650 PG09
Adjusting range 0.2...2 bar, 1...10 bar
Max static pressure 30 bar
Hysteresis Adjustable 10% to 30% set-point
Operating temperature -30C ...+140C (according to diaphragm material)
Contact (without pressure) SPDT
Body material Zinc Plated
Diaphragm NBR (standard) - HNBR - FKM
Threads Manifold mounting according to CETOP standards
Protection IP65
Mechanical life 106 operations
Size Body 40x40 Max. height 86mm
Certifications and Approvals CE, Lloyd's Register, IMQ, Rina
Options Set-point adjustment rising Set-point adjustment falling Factory set-point and hysteresis adjustment
