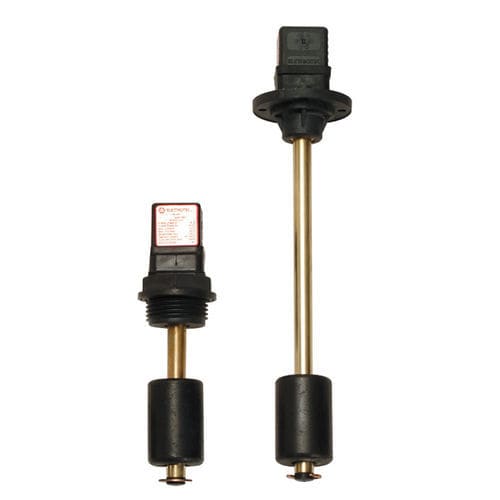

Magnetic float level switch LM1CFPA seriesfor liquidsbrassthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Material
- brass
- Mounting
- threaded, flange
- Other characteristics
- IP65
- Process temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)- Process pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145.04 psi)
Description
Level Switches
Materials of constructionStem: brass Float: NBR Mounting: thermoplastic
Actuation points LM1 – 1 actuation point N.C./N.O. contact LM2 – 1 actuation point SPDT contact LMM1 – 2 actuation points N.C./N.O. contacts
Connection CFPA – Ø 54 flange CTPA – G1” thread connection
Switching capacity LM1/LMM1 - 60W/VA LM2 – 30W/VA
Current LM1/LMM1- 0,8A (resistive) LM2 - 0,5A (resistive)
Max voltage 220V – 50Hz
Fluid specific weight ³ 0.7
Fluid viscosity 150 cSt
Certification and approvals - -
Size Max possible length 1500mm
