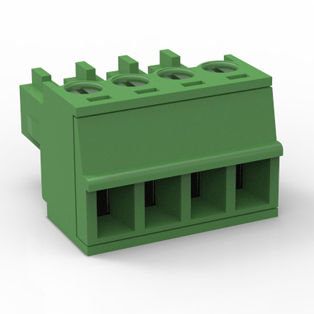

Board-to-wire connector LC-3.50 series
PCBright-angleflat

board-to-wire connector
board-to-wire connector
board-to-wire connector
board-to-wire connector
board-to-wire connector
Add to favorites
Compare this product


Characteristics

Format
board-to-wire, PCB
Shape
right-angle, flat
Connection type
female, plug-in
Material
plastic
Product applications
terminal block
Other characteristics
IEC
Primary current

Min.: 8 A

Max.: 8 A

8 A

Voltage

Min.: 160 V

Max.: 300 V

160 V

Pitch

3.5 mm
(0.138 in)

Description

Part number: LC1-3.5 Center Spacing: 3.5mm(. 20") Number of Poles: 2-24 Poles Approvals: UL, CE Certified, RoHS Comply Specifications: IEC: 160V/8A UL: 300V/8A Cross section area: 1.5mm2 Wire size: #30-14AWG Housing material: polyamide, 94VO Contact material: brass tin plated Termination: screw Recommended PCB hole diameters: 1.4mm (.055") Operating temperature: 105°C (221°F) max., -40°C (-40°F) min. Our Services: High quality Reasonable Prices Fast shipping Accept small orders Tooling development OEM service provided QC Team: QC team with more than 30 professional and technical personnel who ensure 100% products checking. Material:Rhodia PA66 Semi-finished products inspection:Product inspection before 100% finished. Such as Visual Inspection, Leak Testing, Comprehensive Safety Test and so on. Finished Product Inspection: Quality and property test before products are packed and loaded.
