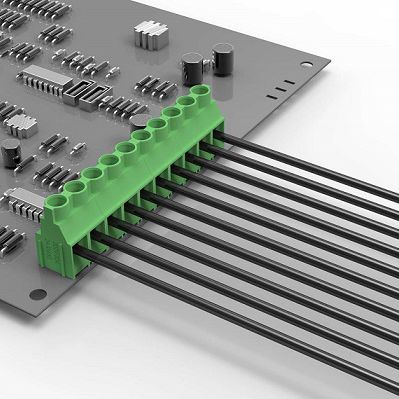

Printed circuit board terminal block LG7.62-7.62 seriesscrew connection
Add to favorites
Compare this product
Characteristics
- Mounting
- for printed circuit boards
- Connection
- screw connection
- Cross-section
Max.: 4 mm²
(0.01 in²)Min.: 4 mm²
(0.01 in²)- Current
17.5 A, 24 A, 32 A
Max.: 32 A
Min.: 10 A
- Nominal voltage
400 V, 630 V
Max.: 630 V
Min.: 300 V
Description
Part number: LG762-7.62
Center Spacing: 7.62mm(. 20")
Number of Poles: 2-24 Poles
Approvals: UL, CE Certified, RoHS Comply
Specifications:
IEC: 630V/32A
UL: 300V/10A
Cross section area: 4 mm2
Wire size: #24-10AWG
Housing material: polyamide, 94VO
Contact material: brass tin plated
Termination: screw
Recommended PCB hole diameters: 1.4mm (.055")
Operating temperature: 105°C (221°F) max., -40°C (-40°F) min.
Our Services:
High quality
Reasonable Prices
Fast shipping
Accept small orders
Tooling development
OEM service provided
QC Team:
QC team with more than 30 professional and technical personnel who ensure 100% products
checking.
Material:Rhodia PA66
Semi-finished products inspection:Product inspection before 100% finished. Such as Visual
Inspection, Leak Testing, Comprehensive Safety Test and so on.
Finished Product Inspection: Quality and property test before products are packed and loaded.
