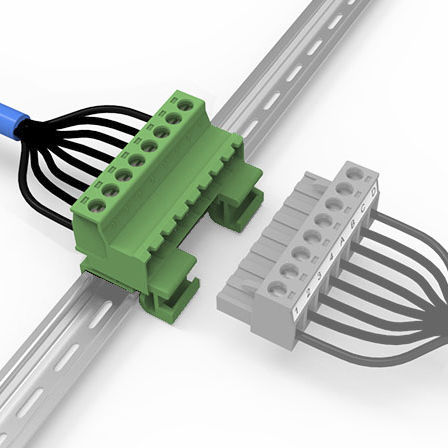

DIN rail-mounted terminal block LC15-5.08plug-inscrew connectionpush-in
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted, plug-in
- Connection
- screw connection, push-in, quick-connect
- Other characteristics
- plastic
- Cross-section
Min.: 2.5 mm²
(0 in²)Max.: 2.5 mm²
(0 in²)- Current
Min.: 12 A
Max.: 20 A
- Nominal voltage
Min.: 300 V
Max.: 320 V
Description
Part number: LC15-5.08
Center Spacing: 5.08mm(. 20")
Number of Poles: 2-24 Poles
Approvals: UL, CE Certified, RoHS Comply
Specifications:
IEC: 320V/15A
UL: 300V/12A
Cross section area: 2.5mm2
Housing material: polyamide, 94VO
Contact material: brass tin plated
Termination: screw
Operating temperature: 105°C (221°F) max., -40°C (-40°F) min.
Our Services:
High quality
Reasonable Prices
Fast shipping
Accept small orders
Tooling development
OEM service provided
QC Team:
QC team with more than 30 professional and technical personnel who ensure 100% products
checking.
Material:Rhodia PA66
Semi-finished products inspection:Product inspection before 100% finished. Such as Visual
Inspection, Leak Testing, Comprehensive Safety Test and so on.
Finished Product Inspection: Quality and property test before products are packed and loaded.
