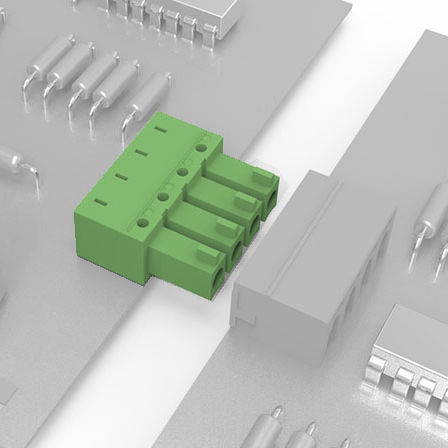

PCB terminal block LC12R-3.5push-inplastic
Add to favorites
Compare this product
Characteristics
- Mounting
- for PCB
- Connection
- push-in
- Other characteristics
- plastic
- Current
Min.: 8 A
Max.: 10 A
- Nominal voltage
Min.: 160 V
Max.: 300 V
Description
Part number: LC12R-3.5
Center Spacing: 3.5mm(. 20")
Number of Poles: 2-24 Poles
Approvals: UL, CE Certified, RoHS Comply
Specifications:
IEC: 300V/10A
UL: 160V/8A
Housing material: polyamide, 94VO
Contact material: brass tin plated
Operating temperature: 105°C (221°F) max., -40°C (-40°F) min.
Our Services:
High quality
Reasonable Prices
Fast shipping
Accept small orders
Tooling development
OEM service provided
QC Team:
QC team with more than 30 professional and technical personnel who ensure 100%
products
checking.
Material:Rhodia PA66
Semi-finished products inspection:Product inspection before 100% finished. Such as
Visual
Inspection, Leak Testing, Comprehensive Safety Test and so on.
Finished Product Inspection: Quality and property test before products are packed and loaded.
