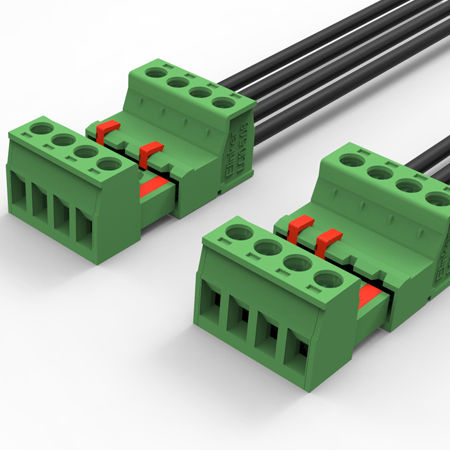

Plug-in terminal block LC10-5.08screw connectionplastic
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in
- Connection
- screw connection
- Other characteristics
- plastic
- Cross-section
Max.: 2.5 mm²
(0 in²)Min.: 0.2 mm²
(0 in²)- Current
Max.: 17.5 A
Min.: 15 A
- Nominal voltage
Max.: 400 V
Min.: 300 V
Description
Part number: LC10-5.08
Center Spacing: 5.08mm(. 20")
Number of Poles: 2-24 Poles
Approvals: UL, CE Certified, RoHS Comply
Salt spray test 48 hours
Flame retardant rating V0
Prevent error of connection
Custom color
Custom customizable the pad printing or label
Specifications:
IEC: 320V/17.5A
UL: 300V/15A
Cross section area: 1.5mm2
Wire size: #30-14AWG
Housing material: polyamide, 94VO
Contact material: brass tin plated
Termination: screw
Recommended PCB hole diameters: 1.4mm (.055")
Operating temperature: 105°C (221°F) max., -40°C (-40°F) min.
Our Services:
High quality
Reasonable Prices
Fast shipping
Accept small orders
Tooling development
OEM service provided
QC Team:
QC team with more than 30 professional and technical personnel who ensure 100% products
checking.
Material:Rhodia PA66
Semi-finished products inspection:Product inspection before 100% finished. Such as Visual
Inspection, Leak Testing, Comprehensive Safety Test and so on.
Finished Product Inspection: Quality and property test before products are packed and loaded.
