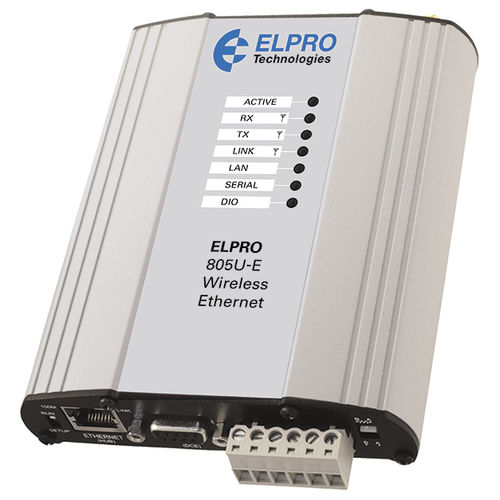

Data modem 805U-E series
IPEthernetRS232

data modem
data modem
Add to favorites
Compare this product


Characteristics

Type
data
Network
RS232, RS485, IP, Ethernet, wireless, Modbus RTU, Modbus TCP, RJ45
Application
industrial, for PLC communications
Mounting
bridge

Description

The 805UE is an ideal solution for Ethernet connections in process control and automation applications – PLC’s, DCS, SCADA, data acquisition. Up to 76.8 Kbps wireless data. 869 MHz 500mW license-free. Suitable for Europe (license-free), South Africa (license-free). Applications: PLC Communications, Data logger communications, Serial and Ethernet communications, Agriculture sprayer control, Water/waste water systems, SCADA networks Features: -802.11, 869MHz fixed frequency for licensefree use in Europe and South Africa. -Single channel 868.525MHz, 500mW (10% duty cycle factor) or 869.875MHz, 5mW (100% duty cycle factor), up to 72kpbs (configurable) throughput to conform to European regulatory compliance. -Bridge/ Router, Access Point/ Client functionality configurable, reducing inventory costs. -Serial client/ server/ multicast functionality (point-point; point to multi-point) with simultaneous use of RJ45, RS232, RS485 ports. -Modbus TCP to Modbus RTU Gateway/Modbus Master for I/O transfer with additional slave I/O via ELPRO’s 115S expansion units. -Spanning Tree (self heal) functionality. -Encryption to 128 bit AES military grade. -MAC address/ IP filtering reducing network traffic. -Online network diagnostics/ configuration. -Onboard DI/O channel (failure/ external status).
