IEEE1588 time server NTS-4000
NTPPTPGPS

IEEE1588 time server
IEEE1588 time server
IEEE1588 time server
IEEE1588 time server
Add to favorites
Compare this product


Characteristics

Protocol
NTP, PTP, IEEE1588
Synchronization source
GPS, GNSS, GALILEO
Other characteristics
high-precision, Grandmaster

Description

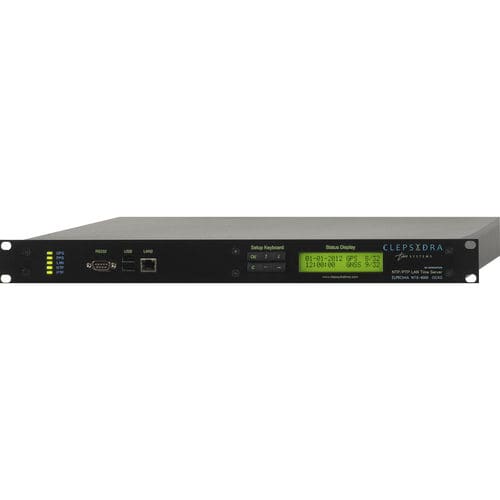

The NTS-4000 is a IEEE1588 grandmaster clock, NTP stratum1 timeserver, and PRTC-A clock class network appliance. The std. version supports HQ OCXO holdover. The devices supports max. 4x LAN. The LAN1-2 support 100Mbps software time-stamping, upgradable to 10GbE*. Optional EXPANDER* NIC is available, supporting another 2x 1GbE with hardware time-stamping and PTP profiles. The NIC has own private PTP stack stored inside private FPGA. This approach ensures best cyber-security and high stability of synchronisation. Server supports 2x redundant GNSS receivers and redundant 2x power supplies. The sync I/O are: PPS, 10MHz, IRIG-B, ToD. This device is suitable for critical infrastructure support. PTP, NTP, SNTP, OCXO, TCXO, 1PPS, 10MHz, IRIG-B, GNSS, Galileo, GPS.
