pulse signal converter
EL-TRG-R Elsys AG

Add to MyDirectIndustry favorites

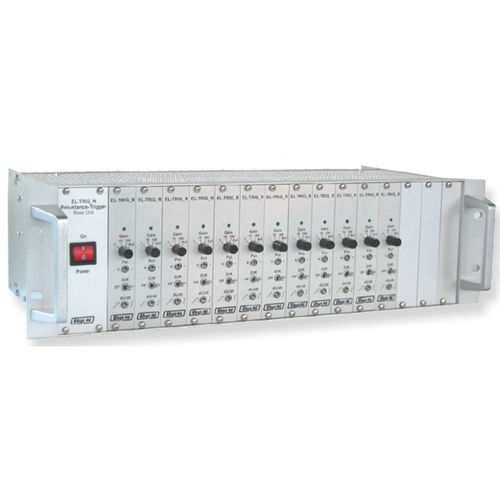

pulse signal converter pulse signal converter - EL-TRG-R
{{requestButtons}}

Characteristics

  • Signal type:

    pulse

Description

The EL-TRIG_R device produces TTL pulses out of reluctance, capacitive or eddy current sensors.

The input signal can be amplified up to factor 100 and differentiated for producing zero-crossings when used with non-typical reluctance sensor signals.

- Gain Factor: 1, 10 100
- Maximum Input voltage: ±35 V
- Bandwith: 30 to 30kHz
- Rack version with up to 24 channels
- Box version with up to 5 channels
