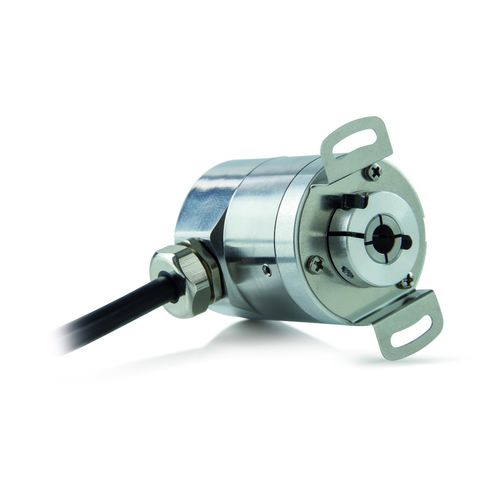

Absolute rotary encoder EMA 36 magneticmechanical15-bit
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- magnetic, mechanical
- Absolute encoder resolution
- 15-bit
- Construction
- blind-shaft, single-turn, non-contact
- Protection level
- IP65, IP67
- Other characteristics
- compact
- Housing diameter
36 mm
(1.42 in)- Shaft diameter
6 mm
(0.24 in)- Output frequency
Min.: 100 kHz
Max.: 1,000 kHz
- Process temperature
Min.: -30 °C
(-22 °F)Max.: 100 °C
(212 °F)
Description
Singleturn absolute EMA 36 (ø 36 mm) encoder series, developed with contact-less magnetic technology. It has a sturdy construction and it's a very compact and adaptable product, easy to set up (code reset). Several flanges (both for solid and hollow shaft) allow different mechanical mountings. EMA36
Catalogs
No catalogs are available for this product.
See all of Eltra S.p.a.‘s catalogs
