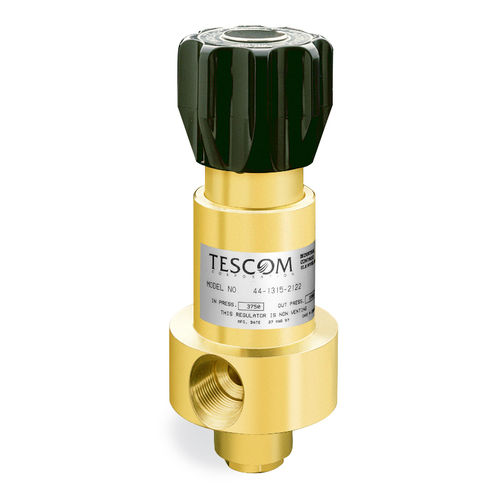

44-1300 Series is a high pressure, high flow pressure reducing regulator that offers a venting and balanced valve design. The 44-1300 Series provides Cv = 0.8 and 2.0. Dome and air load options are available. Ideal for use in commercial diving - breathing air, special gas mix regulation hard suit diving and high pressure tube trailer gas reduction.
Specifications
Seat Material
-Main Valve: CTFE (Except: 44-13X2-XXX2, Teflon®)
-Vent Valve
-Teflon®: 300 and 600 psig / 20.7 and 41.4 bar outlet
-CTFE: 1000 and 1500 psig / 69.0 and 103 bar outlet
O-Rings
-Viton-A®
Back-up Rings
-Teflon®
Gaskets
-CTFE
Remaining Parts
-300 Series Stainless Steel, 17-4, 17-7 Stainless Steel, Teflon® and Brass
Flow Capacity
-1/4 Main Valve: Cv = 0.8
-3/8 Main Valve: Cv = 2.0
Load Type
-Spring, Dome, Air
Weight (without gauges)
-6.25 lbs / 2.8 kg
Additional Information
-For custom modifications or a complete system solution, please contact your local sales office.
Features
-Large piston sensor gives excellent sensitivity
-Balanced valve design ensures stable downstream pressure
