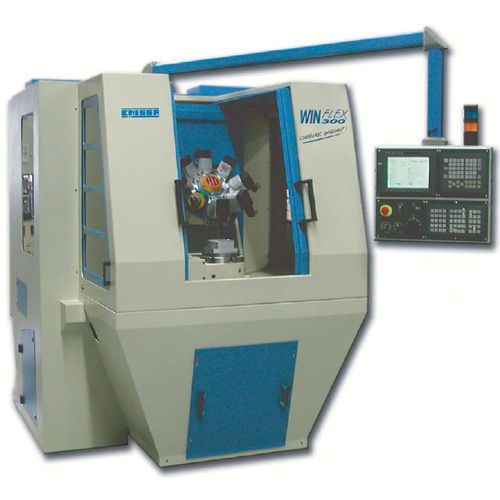

3-axis machining center WINFLEX 300verticalrotating tablewith turret
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- rotating table
- Other characteristics
- with turret
- X travel
300 mm
(12 in)- Y travel
300 mm
(12 in)- Z travel
300 mm
(12 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
11 kW
(14.96 hp)- Work feed X-axis
12,000 mm/min
(8 in/s)- Work feed Y-axis
15,000 mm/min
(10 in/s)- Work feed Z-axis
15,000 mm/min
(10 in/s)- Weight
3,250 kg
(7,165.02 lb)- Overall length
2,070 mm
(81.5 in)- Overall width
1,790 mm
(70.5 in)- Overall height
2,350 mm
(92.5 in)
Description
Flexible machining center with palettization
Equipment
• Rotating table NIKKEN CNC 250
• Moduls on turret head type TE 230159
VIDEO
Catalogs
winflex300
4 Pages
