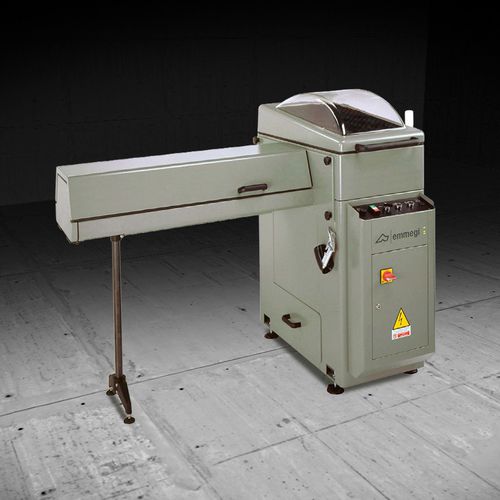

Variable-angle end milling machine LILLIPUT series

automaticpneumaticfor PVC profiles

Horizontal end milling machine with electropneumatic feed and automatic machining cycle. Milling of intermediate angles, +45° / 90° / -45°. Variable speed of tool rotation with electronic inverter for improved quality machining on painted profiles and at intermediate angles. Quick cutter change with pneumatic control. Scratch-proof work table. Fully guarded and sounddamped work zone. The automatically operated sound-damped tunnel (L=1.100 or 2.000 mm) reduces the noise level emitted by the machine down to about 75 dB (only in mitre milling at 90°). The self-tilting indexing stop cancels contact between the stop and the workpiece during feed forward. A pneumatic cylinder ensures the opening/closing of the upper door of the soundproof tunnel. The operator's two-hand consent, acting on the control buttons, enables its movement. A drawer located at the bottom of the machine allows the collection of swarfs generated during machining, facilitating cleaning operations. Both horizontal and vertical vices are pneumatically operated with a low-pressure device. Out-of-square is managed with the ability to vary the tilt from -45° to +45° with manual handling. The position is read by graduated scale. The manual 6-position positive indexing stop enables 6 measurements to be set so that the workpiece can be positioned quickly, thus reducing the time of the work cycle. It is also possible to manually adjust the height of the positive indexing stop.
