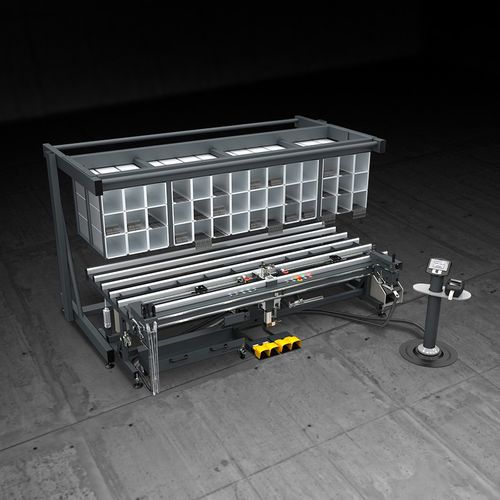

PVC windows and door assembly bench BMF 3500
pneumatic

PVC windows and door assembly bench
PVC windows and door assembly bench
PVC windows and door assembly bench
PVC windows and door assembly bench
PVC windows and door assembly bench
PVC windows and door assembly bench
PVC windows and door assembly bench
Add to favorites
Compare this product


Characteristics

Product to be assembled
for PVC windows and doors
Power source
pneumatic

Description

Hardware assembly bench. The generous work table allows handling large sashes or frames and working with any type of window/door. BMF 3500 measures the hardware, cuts it with a pneumatic shear and performs the screwing with an automatically fed screwing unit. Can be provided with a large rack for the storage hardware, 3-spindle drilling unit for cremone bolts, milling unit for cremone bolts, drilling unit for hinge holes, swarf drawer, accessory shelf and automatic glazing bead measuring system. The bench is equipped with shear and stops arranged on pneumatically driven carriages with independent movement for measuring and cutting perimeter hardware. The cremone bolt milling unit runs on horizontal ways with positive stops for setting position of the feed stroke. Moreover a system of positionable stops allows setting the feed strokes on the three axes. The drilling unit for the handle holes allows simultaneous drilling of the three holes. It can also be positioned on two axes. The screwing unit with automatic feed runs on horizontal slideways and is provided with a laser positioning system. It also allows manual insertion of non-standard screws.
