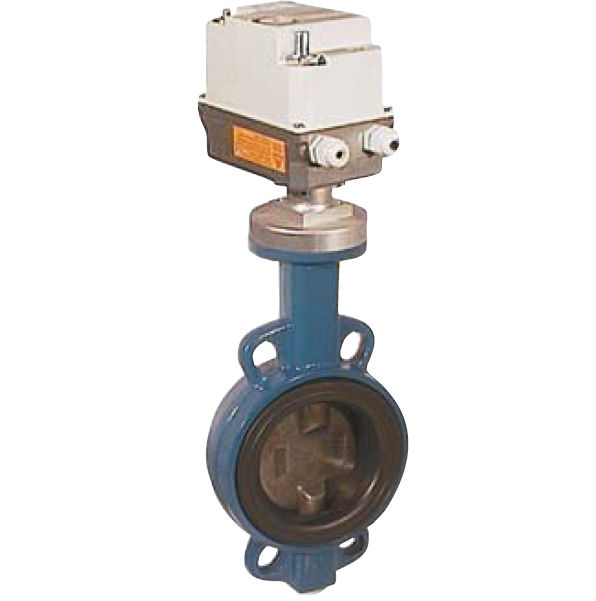

Butterfly valve with electric actuator
DN 40 - 80, PN 16 | TA-ES series
END-Armaturen GmbH & Co. KG
DESIGN
Body consists of 1 part with exchangeable seat
to be mounted between two flanges acc. to
EN 1092-1 Typ11 Form B (PN10/PN16).
From DN 50 face to face dimension according
to EN 558-1 R20.
OPERATION
Direct controlled with secondary reducing
gear.
CONNECTION
Flange DN 40 up to DN 80
PN 10, PN 16, AISI 150
PRESSURE RANGE
between 2 flanges:
max. 16 bar
Aluminium body max. 10 bar
PTFE-Seat max. 6 bar
dead end service:
max. 6 bar
INSTALLATION
As desired, vertical preferred.
TEMPERATURE RANGE
PTFE = -10"Cuptomax.+180"C
NBR = -10"C up to max. + 90"C
EPDM = -20"C up to max. +130"C
FKM = -10"Cuptomax. +180°C
Silikon = -60"C up to max. +190"C
Body consists of 1 part with exchangeable seat
to be mounted between two flanges acc. to
EN 1092-1 Typ11 Form B (PN10/PN16).
From DN 50 face to face dimension according
to EN 558-1 R20.
OPERATION
Direct controlled with secondary reducing
gear.
CONNECTION
Flange DN 40 up to DN 80
PN 10, PN 16, AISI 150
PRESSURE RANGE
between 2 flanges:
max. 16 bar
Aluminium body max. 10 bar
PTFE-Seat max. 6 bar
dead end service:
max. 6 bar
INSTALLATION
As desired, vertical preferred.
TEMPERATURE RANGE
PTFE = -10"Cuptomax.+180"C
NBR = -10"C up to max. + 90"C
EPDM = -20"C up to max. +130"C
FKM = -10"Cuptomax. +180°C
Silikon = -60"C up to max. +190"C
