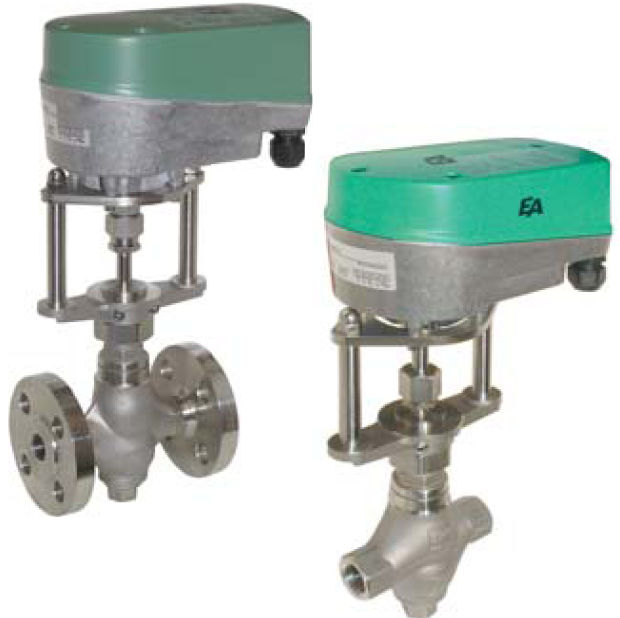

Motorized control valve
DN 15, PN 40 | NBK series END-Armaturen GmbH & Co. KG

DESIGN
Art. NBA with actuators for OPEN-CLOSE
control
Art. NBK with actuators for continuous control.
OPERATION
2/2-ways. Direct acting. Motor control valve.
MATERIAL
Body: Stainless steel
FLOW RATE
Please see table on page 2
PRESSURE DIFFERENCE
max. Ap = 8 bar
CONNECTION
female thread: 1/2"
Flanged connection: DN15 / PN40
Stem seals:
Body of motor:
Internal parts:
Seat:
(others on request)
Stainless steel
FKM
EPDM
metal
PTFE/EPDM
Plastics
VALVE STROKE
ca. 20 mm
