Pressure reducing valve
1/4" - 2", PN 25 | DM series
END-Armaturen GmbH & Co. KG
DESIGN

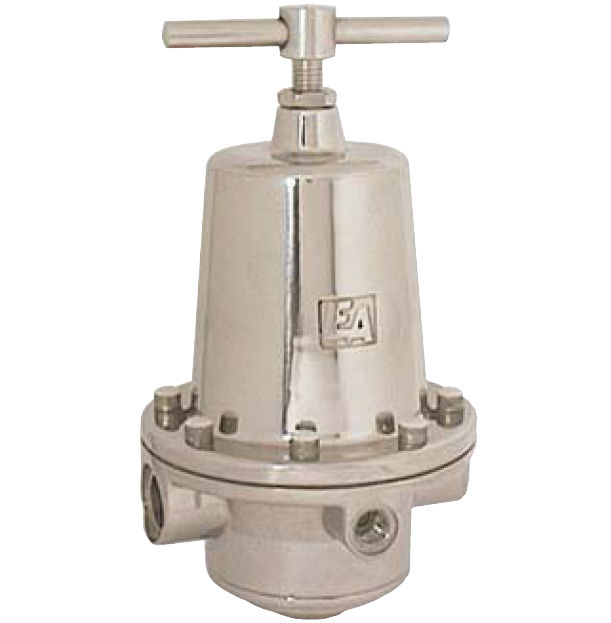

Pressure-reducing valve. Body of screwed
3-part design, made of stainless steel.
CONNECTION
•Female thread GVV up to G2"
•Butt welding DN 8 up to DN 25 acc. to
DIN 3239, DIN 11850-2 or ISO 4200
(bigger sizes on request)
• Flange connection DN 10 up to DN 25
(bigger sizes on request)
•TRI-Clamp- or "Milk" Pipe-connection on
request.
PRESSURE SETTING
By rotation of the butterfly screw, optional with
handwheel, hexagon head screw or hexagon
socket head screw.
PRESSURE GAUGE
two-sided G VV
Notice: For hygienic reasons concerning food
applications, the bores for the manometers are
not completely drilled through. Please specify
it in your order.
PRESSURE RANGE
Inlet pressure:
pressure range 01: up to max. 8 bar
pressure range 03/05: up to max. 25 bar
Outlet pressure adjustable from:
pressure range 01: 0,2 - 3 bar
(0,5 - 3 bar)
pressure range 03: 2-10 bar
pressure range 05 6- 16 bar
Pressure-reducing valve. Body of screwed
3-part design, made of stainless steel.
CONNECTION
•Female thread GVV up to G2"
•Butt welding DN 8 up to DN 25 acc. to
DIN 3239, DIN 11850-2 or ISO 4200
(bigger sizes on request)
• Flange connection DN 10 up to DN 25
(bigger sizes on request)
•TRI-Clamp- or "Milk" Pipe-connection on
request.
PRESSURE SETTING
By rotation of the butterfly screw, optional with
handwheel, hexagon head screw or hexagon
socket head screw.
PRESSURE GAUGE
two-sided G VV
Notice: For hygienic reasons concerning food
applications, the bores for the manometers are
not completely drilled through. Please specify
it in your order.
PRESSURE RANGE
Inlet pressure:
pressure range 01: up to max. 8 bar
pressure range 03/05: up to max. 25 bar
Outlet pressure adjustable from:
pressure range 01: 0,2 - 3 bar
(0,5 - 3 bar)
pressure range 03: 2-10 bar
pressure range 05 6- 16 bar
