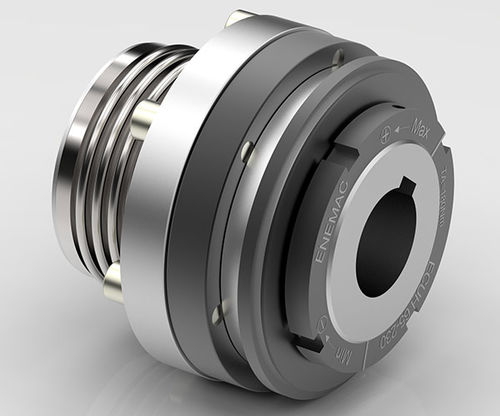

Torque limiter with bellows coupling ECUHfrictioncompactsafety
Add to favorites
Compare this product
Characteristics
- Operation
- friction
- Other characteristics
- compact, safety, with bellows coupling
- Torque
Max.: 9,000 Nm
(6,638.0593 ft.lb)Min.: 1.8 Nm
(1.3276 ft.lb)- Diameter
Max.: 130 mm
(5.12 in)Min.: 6 mm
(0.24 in)- Rotational speed
Max.: 4,000 rpm
(25,132.74 rad.min-1)Min.: 2,500 rpm
(15,707.96 rad.min-1)
Description
Torques
1,8–9.000 Nm
Properties
with metal bellows coupling and conical hub, keyway on the safety part
compact performance
Applications/Specific features
shaft-/shaft-connections
the metal bellows can compensate shaft misalignments
shaft connection with cone hub and keyway
• for direct drives, with metal bellows coupling
• with conical bushing / shrink disc and keyway
• compensation of misalignments
• backlash free, compact, short length
Catalogs
TORQUE LIMITERS
36 Pages
