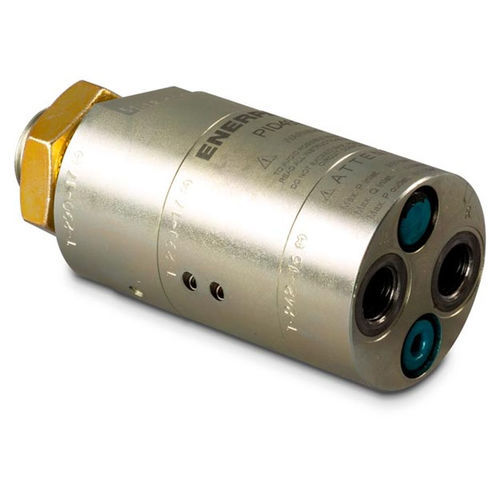

Hydraulic pressure intensifier PID series

for oilcompact

Product Lines : Workholding Tools • Internal bypass valving enables high output flow rates • Compact and self-contained design allows for ease of installation • Includes dump valve eliminating the need for an external pilot check valve • Select fit of all internal components provides long operating life • FL2101 filters and VFC1 flow control valve included When hydraulic pressure from an existing power source is limited, Enerpac oil-to-oil intensifiers serve to increase output pressure to satisfy the required application Intensifier principle • When oil is supplied to the inlet (IN) port it flows freely past the check valves (CV) and the dump valve to the cylinder and advances it. • As the inlet pressure increases the oscillating pump (OP) automatically increases the outlet pressure by the chosen intensification. • Once the maximum pressure is reached, the pump frequency lowers and balances at the maximum pressure. • Free flow from the cylinder to tank occurs when the directional control valve is switched to supply the R-port. • 10 micron filtration is required on all ports in the circuit to ensure trouble free operation. Filters and flow control included.
