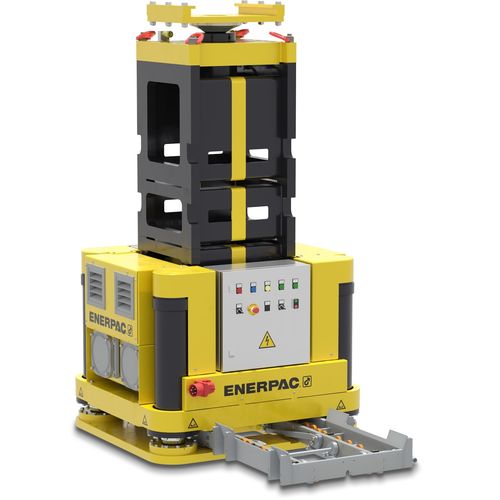

Hydraulic lifting system JS series
synchronousfor heavy loads

hydraulic lifting system
hydraulic lifting system
hydraulic lifting system
hydraulic lifting system
hydraulic lifting system
hydraulic lifting system
hydraulic lifting system
hydraulic lifting system
hydraulic lifting system
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Other characteristics
synchronous
Product applications
for heavy loads
Load limit

125 t, 250 t, 500 t, 750 t
(138 us ton, 276 us ton, 551 us ton, 827 us ton)

Description

The jack-up system is a multipoint lifting system. A typical system setup includes four jack-up units positioned under each corner of a load. A four unit setup has a lifting capacity of 2,000 metric tons (500 tons per unit). The lifting frame of a jack-up contains four hydraulic cylinders in each corner which lift and stack steel boxes. A load is lifted in increments as boxes are slid into the system, lifted, and stacked; forming 'lifting towers'. A jack-up system is operated and controlled by a computer control unit. Each unit's lifting and lowering operations occur simultaneously; the computer control unit's synchronous technology maintains the balance of the load. The hydraulics power units are embedded within each unit's lifting frame. Safe lifting heights are dependent on the expected side load.
