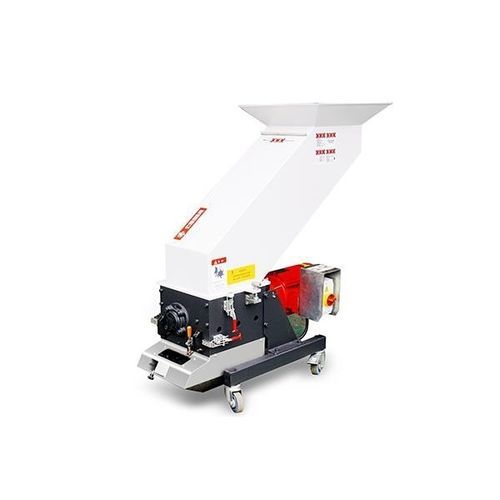

Low-speed granulator GL series

rotorfor waste

The slow speed granulator in the GL200 range feature a staggered 200mm diameter rotor with widths ranging from 200 to 450 mm. The rotor is directly driven by a geared motor. The low rotor speed reduces the noise level of the machine and creates less dust while grinding. The special design knives of the GL series can be sharpened easily and do not need adjustment afterwards. The material is fed via a sound proof feed hopper that can be tailored to fit various applications and feeding ways. Depending on the requirements, the machine can be fit with a wide variety of hoppers, they are mounted on either low or high level base frames with matching suction bins or bag filling adapters. Quick snap fasteners and hand screws make access to the machine for cleaning and maintenance fast and easy. - Direct driven staggered rotor - Special knife design makes adjustment unnecessary - Easy access for maintenance and cleaning - Slow rotor speed creates less noise and dust - Easily customizable to suit different applications The GL200 slow speed granulators of the 200 series are mainly used in injection and blow molding processes as beside the press machines to grind runners and sprues. The resulting granules are then immediately reintroduced into the production process. The machines can be used for rejected products in the online recycling process as well. Different hopper and base frame designs make it possible to integrate the machine with most types of injection molding machines and robots. - V type staged array - Blade can be repeatedly sharpened - Assembling type screen design - Main picture - Screen to be discharged in fast way - Online recycling
