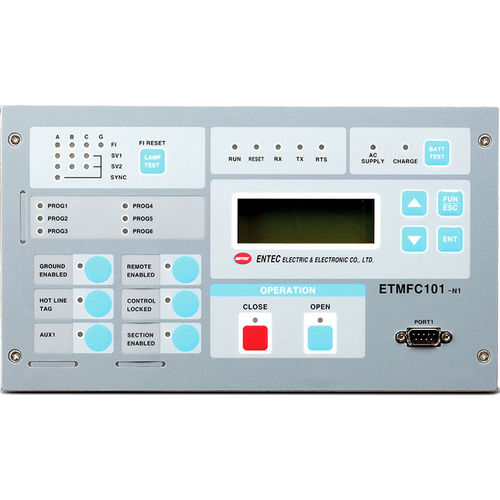

Voltage control relay ETMFC101 - N1/N2
currentphase sequencepower

voltage control relay
voltage control relay
Add to favorites
Compare this product


Characteristics

Measured/monitored value
voltage, current, phase sequence, power
Mounting
panel-mount
Other characteristics
digital, programmable, with fault indication

Description

-Multi-function relay(RTU Built-in) for LBS and EFI (N1 for LBS, N2 for EFI) -Voltage, Current and Power Metering, Open Phase, Live Load Block, Synchronism Check, etc. -Fault detection and indication (FI) (Phase, Ground, Residual Ground and Negative Sequence) -Protection functions (51, 50, Inrush Restraint and CLPU) available in ETMFC101-N2 -Loop control function (Auto Sectionalizer & Tie Point Switch) -Communication protocols: DNP3.0, MODBUS and IEC60870-5-101/104 -PLC, PQM, GPS, IRIG, SMS functions available
