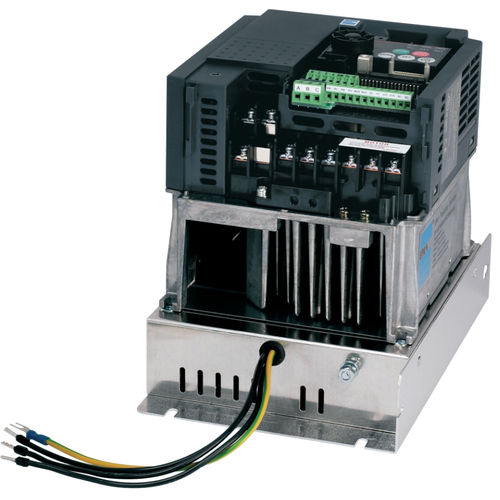

Low-pass electronic filter NF-U series

passiveEMIpower

Space-saving mounting under the servo or frequency converter Customized VFD matched filters Available for many brands Low leakage current, high attenuation Use of VFD’s possible in residential areas Compliance with the limits even with long motor cables Suppression to EN 55011/55022 class A and B Suppression to EN 61800-3 Category C1 and C2 Manufactured according to EN 60939, UL 1283, RoHS Footprint filter are already available for many inverter brands or can be designed by us. Footprint filters for following brands can be delivered as standard: EPA, Mitsubishi Electric, Delta Electronics, Yaskawa, Omron, Lenze, KEB, Hitachi, Siemens, Fuji, Moeller, Toshiba, Control Techniques, LG, LS, Shenzen, Schneider Electric, Sanyo Denki and many more. If you can not find on this list your desired type, so please check with us. We have the right footprint filter for your inverter! Standards The inverter-filter combinations are designed and tested to comply with the limits of the following standards mentioned: DIN EN 61800-3 “Adjustable speed electrical power drive systems – EMC requirements and test methods” and DIN EN 55011 “Industrial, scientific and medical radio-frequency devices (ISM devices) – radio disturbance characteristics – Limits and methods of measurement
