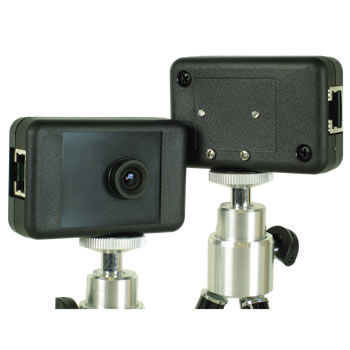

OEM camera
SV022 Epix

Characteristics

  • Domain:

    OEM

Description

SV022C and SV022M cameras feature small size and LVDS differential digital video output. Images with 8 or 10 bits per pixel, 752H by 480V, 60 frames per second are captured by the high performance Aptina MT9V022 image sensor's 10 bit A-D converter and serialized for image transmission. The Low Voltage Differential Signal output of the camera can drive up to 5 meters of cable to the host computer. Five to twelve volt DC power and I2C control signals for the camera are sent over a category 5e cable with RJ45 connectors. A global shutter stops moving targets without rolling shutter image effects.

The SV022 uses a plastic case that is 2.50 inches long by 1.65 inches high and 0.81 inches deep (63.50 mm L x 41.75 mm H x 20.60mm D). The M12 lens outer end is typically 0.5 inches (12.7mm) from the front of the case when the lens is at infinity. A standard 1/4 - 20 tripod mount is located on the long side of the case.
