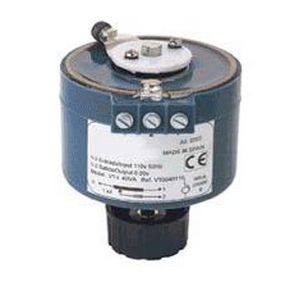

Power auto-transformer encapsulatedsingle-phasethree-phase
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- encapsulated
- Electrical characteristics
- single-phase, three-phase
- Other characteristics
- toroidal
- Electric power
Min.: 160 W
Max.: 33,000 W
- Primary voltage
127 V, 230 V, 400 V, 480 V
- Primary current
Min.: 0.69 A
Max.: 48 A
Description
Field of application
Applications that need a continuous variation of alternating current, single-phase or three-phase, from zero to the maximun, with high resolution and a constant degree of intensity.
Description and production series
Autotransformer for voltage variation wound on toroidal core with graphite rollers.
Single-phase standard versions: 127 V from 160 to 7000 VA, 230 V from 160 to 11000 VA and 400 V from 500 to 10000 VA, manual or power-assisted control. For higher powers variators are connected in parallel.
Three-phase standard versions: 3*230 V from 480 to 21000 VA and 3*400 V from 480 to 33000 VA, STAR connection, manual or power-assisted control. For higher powers variators are connected in parallel.
Catalogs
No catalogs are available for this product.
See all of EREMU‘s catalogs
