centrifugal separator / oil / for the recycling industry / compact
Eriez Magnetics Europe Limited

{{requestButtons}}

Characteristics

  • Technology:

    centrifugal

  • Separated substance:

    oil

  • Application domain:

    for the recycling industry

  • Other characteristics:

    compact, mobile, high-performance

  • Filtration size:

    50 µm

  • Flow rate:

    Min.: 4 l/min (1.057 us gal/min)

    Max.: 16 l/min (4.227 us gal/min)

Description

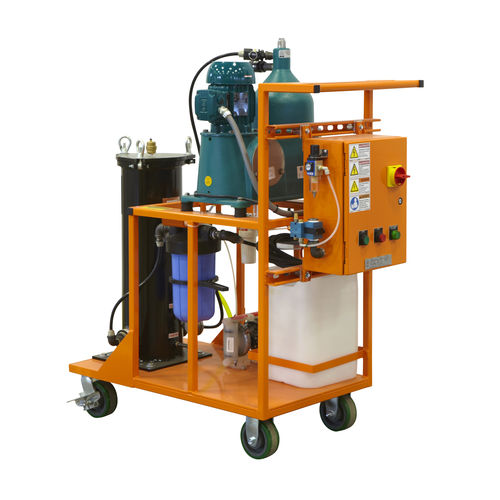

The Eriez Portable Tramp Oil separator, including a high speed, manually cleaned, disc bowl centrifuge, removes both free and emulsified tramp oils to 0.5% or less and particulate matter to 5 microns nominal in one pass on any stable coolant or cleaner.

This compact and portable unit, completely assembled on wheels, is designed to extract fluid from both small, individual machine sumps as well as larger central systems. The unit can process flow rates of 1-4 gpm (4-16 lpm) depending on fluid type and condition.

Key Features:

High speed centrifuge
1-1/2 HP belt drive motor
Stainless steel bowl
Built in clean coolant discharge pump
20 mesh basket strainer
Double diaphragm air pump as a dirty fluid feed pump with air filter/pressure regulator
50-micron cleanable filter prior to the centrifuge, extra cartridge and spanner wrench included
5 gallon (20 liter) tramp oil container with fluid level detector.
Clean fluid discharge hose
Control panel (NEMA 12 enclosure) with motor starter for centrifuge, and on/off buttons
