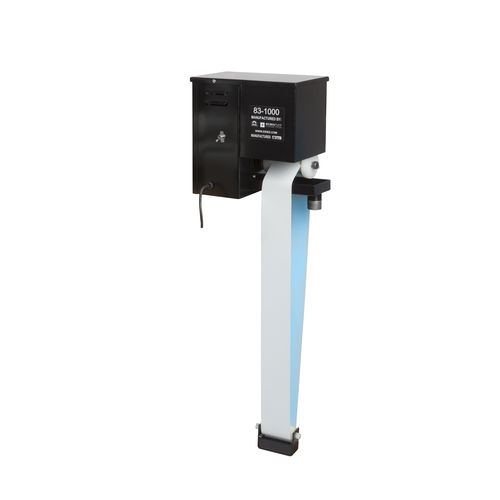

Eriez’ Surface Oil Belt Skimmers feature an oleophilic (oil attracting) belt that hangs into the sump where it removes free-floating tramp oils. Two models and four belt options provide different rates and levels of oil separation.
The oil skimmer is designed for use on large machine tools with tanks deeper than two feet experiencing oil contamination in the range of one to two gallons of oil per hour.
Features:
3” belt width
Simple installation
No scraping, oil is squeezed between rollers
Open, accessible oil collecting tray and drain connector
Variety of oleophilic belt materials for different applications
Capacity to remove 1 to 1.5 gallons of oil contaminants per hour
115 volt operation
Oil Skimmer, Jr.
The Oil Skimmer Jr. is designed for machine tools with fairly shallow tanks experiencing oil contamination in the range of one to two quarts of oil per hour.
Key features:
1” belt width
Surface or side mounted option
Simple oil scraper/wiper design
Wiper guard extends belt life
Nothing to wear out
Capacity to remove 1 to 1.5 quarts of oil contaminants per hour
115 volt operation
