coalescing separator / oil / for the recycling industry
Eriez Magnetics Europe Limited

{{requestButtons}}

Characteristics

  • Technology:

    coalescing

  • Separated substance:

    oil

  • Application domain:

    for the recycling industry

  • Flow rate:

    Min.: 1 us gal/min (3.785 l/min)

    Max.: 1.5 us gal/min (5.678 l/min)

Description

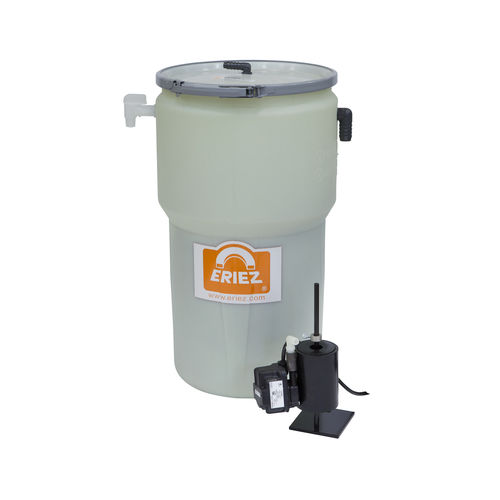

This unit consists of a 115-volt electric submersible pump couples to an adjustable skimming device which, when installed properly, rests in the sump and collects oil from the surface. The pump delivers skimmed tramp oil and coolant to the coalescer settling tank. The settling tank consists of a 15-gallon polyethylene drum, an inner oil diversion baffle, an oil discharge spigot, and a clean coolant discharge hose. Clean coolant gravity flows from the settling tank through the discharge hose and back to the sump.

Key features:

Small coalesce for individual machine tool sumps and part washers
1 to 1-1/2 GPM process rate
Extends coolant life, improves tool life
Skimmer can be easily modified to work in machine sumps with as little as 3” of coolant
