static mixer / for liquids
Eriez Magnetics Europe Limited

Add to MyDirectIndustry favorites
static mixer / for liquids static mixer / for liquids
{{requestButtons}}

Characteristics

  • Technology:

    static

  • Applications:

    for liquids

Description

Dual Ratio Mixer
This is a venturi style coolant mixer that automatically mixes two different metalworking coolants or one coolant with two different ratios. Now you can set up one mixer to supply both a fresh charge concentration and a leaner make up concentrations in an easy to use design to minimize operator error. Once set up, operator just pushes the button for the desired concentration to fill containers with mixed fluid.

Features:

Pressure regulation eliminates concentration variances
E-Gap Backflow Protection (ASSE 1055B Approved)
Concentrate suction and discharge hoses

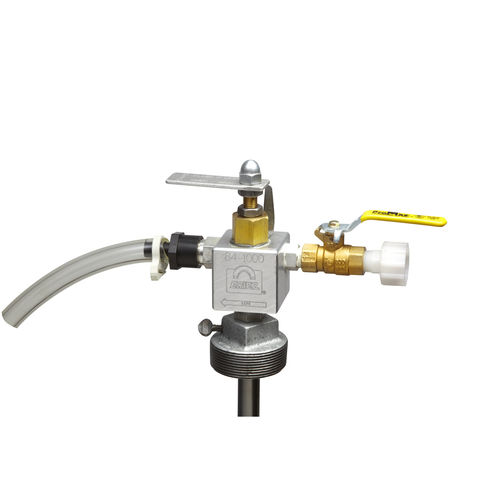

Drum Top Mixer
The Eriez Drum Top Mixer is a compact, easy-to-use venture mixer for combining water with coolant concentrates. Water, jetting through the unit, creates a vacuum that siphons concentrate from the drum. A needle valve allows for infinite adjustments across the mixture range. Available in 3 and 10 GPM versions, with mixing range adjustable from 1% to 20%, these units have all-metal construction for maximum durability.

Features:

All metal construction
2” NPT sliding-bung drum adapter
Discharge hose assembly
Inlet shutoff valve with garden hose thread adapter
