magnetic grate separator / metal / for wastewater treatment
Xtreme ™ ERIEZ


  • Technology:

    magnetic grate

  • Separated substance:


  • Application domain:

    for wastewater treatment

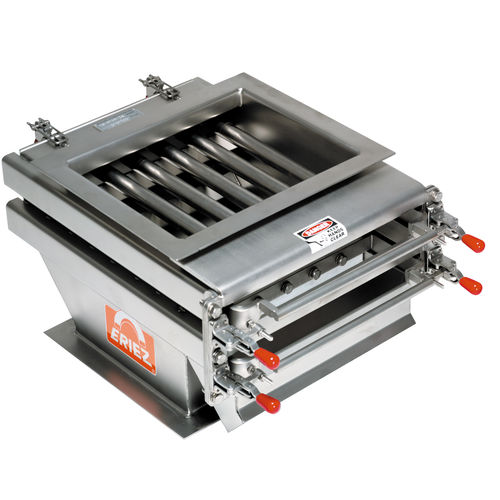

The simple-to-clean rare earth grates in housings provide for quick removal of accumulated fine iron contamination. By sliding the individual door from the housing, the accumulated metal contamination can be scraped from the tube and discharged through the front of the housing.

The cleaning cycle is reduced to just a few seconds via the push/pull operations. Standard unit features are the dual rows of staggered magnets, stainless steel tube scraper, 25mm diameter magnet tubes on 50mm centers, etc. Made entirely from stainless steel, the unit has a glass bead finish.
