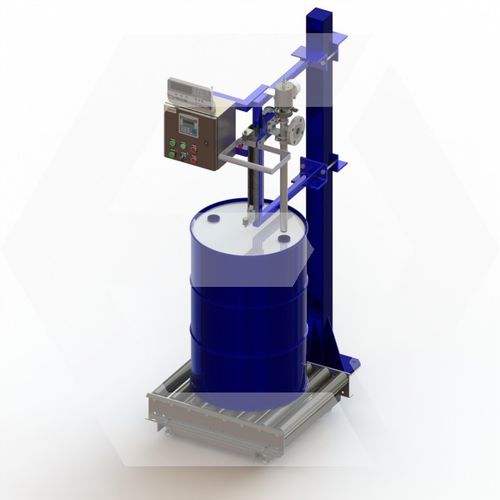

Semi-automatic filling machine ERIFUT 11-1XNP-LT-DOSING
drumfor packagingcontainer

semi-automatic filling machine
semi-automatic filling machine
semi-automatic filling machine
semi-automatic filling machine
Add to favorites
Compare this product


Characteristics

Operational mode
semi-automatic
Container type
drum
Product applications
for packaging, container, for non-foaming liquids
Domain
laboratory, for the food industry, for the chemical industry, for the pharmaceutical industry
Type
gravity, vertical
Number of heads
with 1 head
Other characteristics
1-axis, ATEX, with conveyor
Throughput

20 p/h

Machine length

1,880 mm
(74 in)

Machine width

600 mm
(24 in)

Machine height

2,110 mm
(83 in)

Machine weight

313 kg
(690 lb)

Description

The ERIFUT 1 XNP LT DOSING allows the semi-automatic packaging in accordance with a target weight with a partial diving cane. The ERIFUT 1 XNP LT DOSING is ergonomically designed to optimize the conditions of handling and operator exposure in an improvement process complies with REACH requirements : • Control panel and deported maneuvering system • No direct contact with the dip tube • No direct exposure to the emanation or splashing (completely removed with an extractor hood) • No awkward handling of the dip tube This configuration, associated with rollers conveyor, is ideal for the filling of non-foaming products in barrels or containers. Filling is performed, based on a unit weight target, by an automatic filling cycle triggered by the operator DOMAINS OF USE Our machines are designed for industrial exploitation. • Atmosphere without specific constraint. • Atmosphere with specific constraint for use in chemical environments, food or pharmaceutique.For example: ISO 7 clean room or laboratory class D, GMP strain, ASM BPE, etc .. • Our machines can meet the requirements of the ATEX directive for use in explosive atmosphere Zone 1,21 and 2,22. FEATURES Motion control • The diving system indexable (stroke 420 mm) to manually ensure diving the dip tube into the container with a blocking high and low position of the tube. The stops positioning units are adjustable in height to allow the modification of the stroke. An assist spring allows to help the rise of drumming device. • Barreling adjustable arm height punctually with tools.
