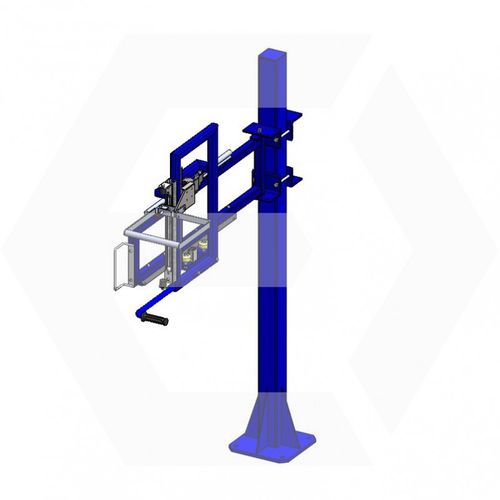

Manual filling machine ERIFUT 3 XNP LT MANU
drumfor non-foaming liquidsfor viscous liquids

manual filling machine
manual filling machine
manual filling machine
manual filling machine
manual filling machine
manual filling machine
manual filling machine
Add to favorites
Compare this product


Characteristics

Operational mode
manual
Container type
drum
Product applications
for non-foaming liquids, for viscous liquids, for pasty products
Domain
laboratory, for the food industry, for the chemical industry, for the pharmaceutical industry
Type
gravity, vertical
Number of heads
with 1 head
Other characteristics
3-axis, ATEX
Throughput

20 p/h

Machine length

1,880 mm
(74 in)

Machine width

1,000 mm
(39 in)

Machine height

1,820 mm
(72 in)

Machine weight

80 kg
(176 lb)

Description

The ERIFUT 3 XNP LT MANU allows packaging of non-foaming, pasty, liquid products in containers of different types. • The filling is done manually thanks to a remote mabeuvering handle. Fill in fountain (over level). • Polar movement of the arm partially covers the surface of a pallet. this configuration is ideal for filling 4 drums on a pallet or container. • The ERIFUT LT MANU allows the assembly of your existing tube (diam 25 to 80 up to 9 Kg with assistance spring on the ascent). • Availabl in bracket or wall mounting. DOMAINS OF USE Our machines are designed for industrial exploitation. • Atmosphere without specific constraint. • Atmosphere with specific constraint for use in chemical environments, food or pharmaceutique.For example: ISO 7 clean room or laboratory class D, GMP strain, ASM BPE, etc . Our machines can meet the requirements of the ATEX directive for use in explosive atmosphere Zone 1.21 and 2.22. FEATURES Motion control • Manual positioning (rotation X and Y translation) of drumming device the right of the filling hole through the control handle. • The diving system indexable (Z axis) to manually ensure diving the dip tube into the container with a blocking high and low position of the tube. The stops positioning units are adjustable in height to allow the modification of the race. An assist spring allows to help the rise of drumming device. • Barreling adjustable arm height punctually with tools. • Filling Management • Manual filling. • The ERIFUT 3 XNP LT MANU is compatible with existing weighing system (switches pit weighs palette, etc ..) without enslavement. ADVANTAGES • Economic solution
