The RPC 500 offers rework process observation with an attractive price/performance ratio. The 70x magnification macro zoom lens provides high resolution images for the most difficult applications and consistently controlled processes.
REWORK CIRCUIT BOARD FORMATS*
From S to M and L to XL.
*PCB format: length times width (each approx. max. limit): S = 300 x 250 mm; M = 390 x 285 (+x) mm; L = 535 x 300 mm; XL = 625 x 625 mm.
Optical control during the rework soldering process
High quality "CMOS USB 2.0" camera
70x optical macro zoom lens
LED dual spot lighting with flexible arms and variable intensity (delivery might differ from depicted version)
Central 180° swivel arm
Stable, non-slip foundation

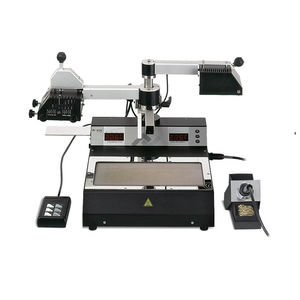

Suitable for Rework Systems IR 550, HR 100 and HR 200
The Technology of Ersa Rework-Systeme sustainably secures the added value of electronics:
gentle heating technology
sensor guided soldering processes
contactless residual solder removal
precise component placement
complete process documentation
clear user guidance
