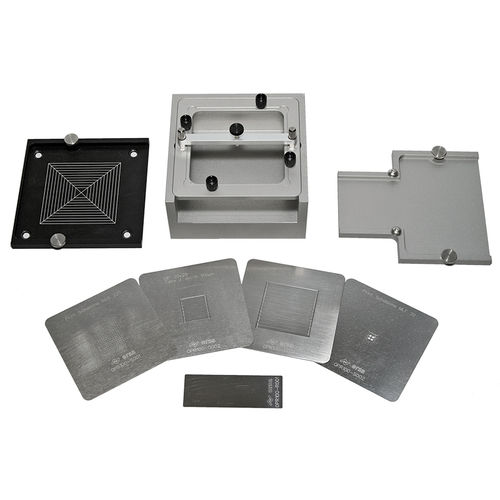

The Ersa Dip&Print Station enables the user of Ersa rework systems to perform component preparation (application of solder paste and flux) easily, reliably and reproducibly. Optional dip stencils allow components to be dipped into flux or solder paste in a defined manner, thus creating a defined depot of solder connections.
REWORK CIRCUIT BOARD FORMATS*
From S to M and L to XL.
*PCB format: length times width (each approx. max. limit): S = 300 x 250 mm; M = 390 x 285 (+x) mm; L = 535 x 300 mm; XL = 625 x 625 mm.
Suitable for all Ersa Rework systems
Preparation of components with solder paste or flux
Simpler, more reliable and repeatable application
Standard dip stencils for many uses (flux or dippable solder paste)
Component specific print stencils according to customer requirement
Suitable adapters for Ersa Rework Systems
Cleaning and drying of stencils in the station
The Technology of Ersa Rework-Systeme sustainably secures the added value of electronics:
gentle heating technology
sensor guided soldering processes
contactless residual solder removal
precise component placement
complete process documentation
clear user guidance
