Cutting tool grinding machine JUMAXIMAT

workpieceCNCautomatic

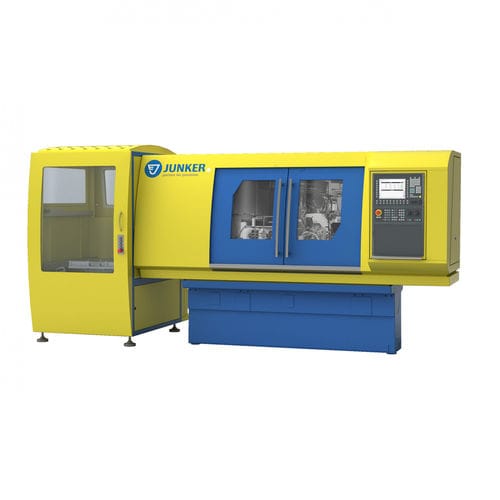

In the JUMAXIMAT, the threaded tool is ground either unsupported or with tailstock support. A steady can be used for stabilization. Requirement-based loading systems ensure a smooth production sequence. A CNC dressing unit creates all the profile shapes. Highlights Automatic coolant pipe adjustment Rapid retooling Grinding process descriptions HSS tap: M24, straight fluted Cycle time: < 208 s Grinding task: Grinding four chip grooves, and peel grooves with chamfer and bevel CONTROL SYSTEM The Erwin Junker Operator Panel was specifically developed to control grinding machines. All machine components are controlled using the operator panel – irrespective of the series and the used control system. The identical structure, intuitive menu guidance and visualization of the workpiece geometry make for extreme user convenience and flexibility in operation. Programming takes place directly using the operator panel or an external programming tool. DRESSING UNIT Grinding wheel dressing is CNC controlled. A driven diamond dressing wheel or a workpiece-dependent diamond profile roller can be used. Dressing takes place manually or using an automatic dressing program with grinding wheel compensation. MACHINE BED The machine bed made of mineral cast provides impressive damping behavior and torsional rigidity. The temperature stability allows fluctuations in the ambient temperature to be compensated with a minimum of effort, ensuring a high level of dimensional stability throughout the whole day.
