panel feedthrough / IP67
FKFS4.5/M12 series ESCHA Bauelemente

Add to MyDirectIndustry favorites

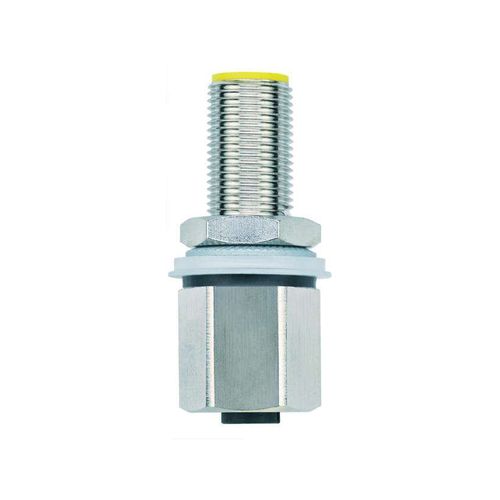

panel feedthrough / IP67 panel feedthrough / IP67 - FKFS4.5/M12 series
{{requestButtons}}

Characteristics

  • Product applications:

    panel

  • Protection level:

    IP67

Description

Connector female, M12x1, straight male, M12x1, straight
Number of pins 5 5
Coding of A A
Rated voltage
60V
60V
Current load (at 40°C) 4 A 4 A
Insulation resistance
≥108 Ω
≥108 Ω
Resistance mΩ mΩ
Ambient temperature product -30°C...+90°C -30°C...+90°C
Contact material Metal, CuZn, gold-plated Metal, CuZn, gold-plated
Contact-carrier material Plastic, TPU, YE Plastic, TPU, YE
Standards IEC 61076-2-101 IEC 61076-2-101
Degree of protection (mounted) IP67 IP67
Mechanical life-cycle >100 mating cycles >100 mating cycles
Degree of pollution 3 3
