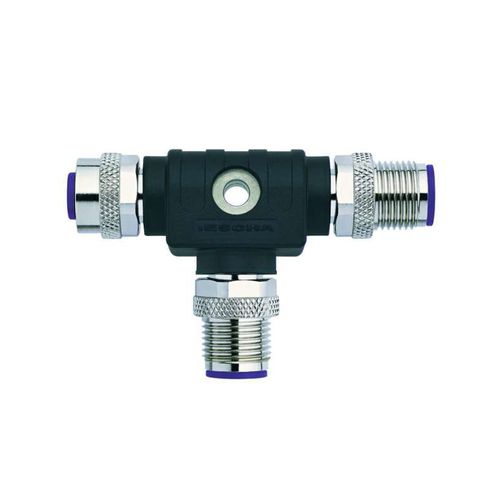

T connector / data / DIN / screw coupling
PB-T-WAKSW5-WASSW5-WASSW5 ESCHA Bauelemente

{{requestButtons}}

Characteristics

  • Type:

    data

  • Format:

    DIN

  • Shape:

    T

  • Connection type:

    screw coupling

  • Size:

    M12

  • Material:

    nickel-plated brass

  • Other characteristics:

    IP67, IP65, IEC, IP68, PROFIBUS

  • Current:

    0.4 A

  • Voltage:

    60 V

Description

Connector female, M12x1 male, M12x1 male, M12x1
Contact material Metal, CuZn, gold-plated Metal, CuZn, gold-plated Metal, CuZn, gold-plated
Contact-carrier material Plastic, TPU, VT Plastic, TPU, VT Plastic, TPU, VT
Coupling nut material Metal, CuZn, nickel-plated Metal, CuZn, nickel-plated Metal, CuZn, nickel-plated
Rated voltage
60V
60V
60V
Coding of B B B
Number of pins 5 5 5
Current load (at 40°C) 0.4 A 0.4 A 0.4 A
Insulation resistance

≥108 Ω
Ambient temperature product -30°C...+90°C
Grip body material Plastic, TPU, BK
Sealing (female) material FPM/FKM
Mechanical life-cycle >100 mating cycles
Standards IEC 61076-2-101
Degree of protection (mounted) IP65, IP67, IP68
Degree of pollution 3
Shielding Yes, 360°
