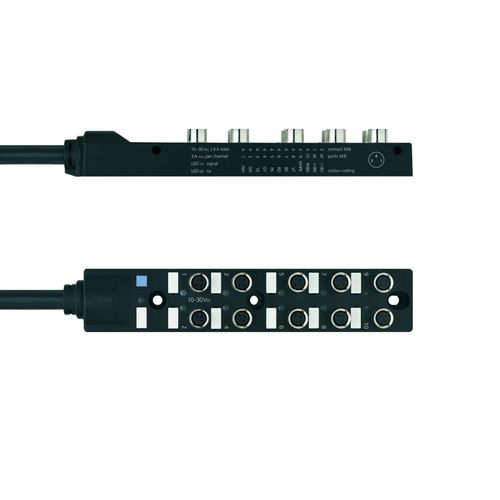

I/O-junction 10-way, with cable
I/O-slot female, M8x1
Number of pins 3
Rated voltage
30V
Current load (at 40°C) 2 A
Total current load 6 A
Insulation resistance
≥108 Ω
Resistance 5 mΩ
Ambient temperature product -30°C...+90°C
Number of LEDs 11
Number of I/O-slots 10
Circuit logic pnp
Signal status-indicator LED YE
Operating voltage-indicator LED GN
Contact material Metal, CuZn, gold-plated
Contact-carrier material Plastic, PA, BK
Sealing (female) material FPM/FKM
Housing material Plastic, PA, BK
Thread insert material Metal, CuZn
Connecting type Fixed cable connection
Degree of protection (mounted) IP65, IP67
Mechanical life-cycle >100 mating cycles
Degree of pollution 3
