Pressure sensor with digital output
0 - 500 mbar / 0 - 3000 bar, USB | GS4200-USB
ESI Technology Ltd
Y *USB 1.1 AND USB 2.0 FULL SPEED COMPATIBLE
Y *AUTO DETECTION & CONFIGURATION
Y *HOT PLUGABLE AND SOLELY POWERED BY USB BUS
Y *ESI-USB© WINDOWS INTERFACE SOFTWARE SUPPLIED
Y *EXTREMELY HIGH 21 BIT RESOLUTION
Y *EXCELLENT STABILITY AND REPEATABILITY
Y *INCLUDES BUILT-IN TEMPERATURE MONITORING
Y *IP68 USB CABLE INCLUDED
Y *RANGES 0-500mbar TO 0-1500bar

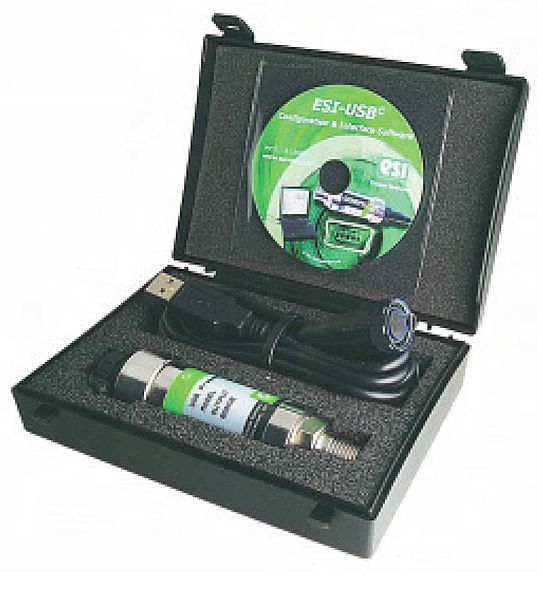

The GS4200-USB© Digital Pressure Transducer has been designed to measure, analyse and record pressure directly on your computer without the need for costly I/O interface boards. The transducer is powered by the computer's USB port, data is then presented on the PC via the ESI-USB© configurable software supplied with the transducer. It has instant connection with auto-detection, and will configure
automatically with your desktop or laptop pc via USB protocol. The fast sample rate enables dynamic pressures to be measured with up to 21 bit resolution. For real-time analysis, data transferred to the PC is achieved without loss of accuracy or bandwidth.
This pressure transducer is USB 1.1 and USB 2.0 compatible, the ESI-USB© interface configuration and analysis software is compatible with Windows© 98, 98SE, 2000, ME, XP & Vista. Data can be displayed in graphical or tabular form, with a choice of pressure units and fully adjustable scales. Data can be saved to a file or exported to Excel. Excellent measurement accuracy provides high resolution with a precision greater than 1 in 10,000. Pressure ranges are available from 500mbar to 1500bar in gauge or absolute reference.
