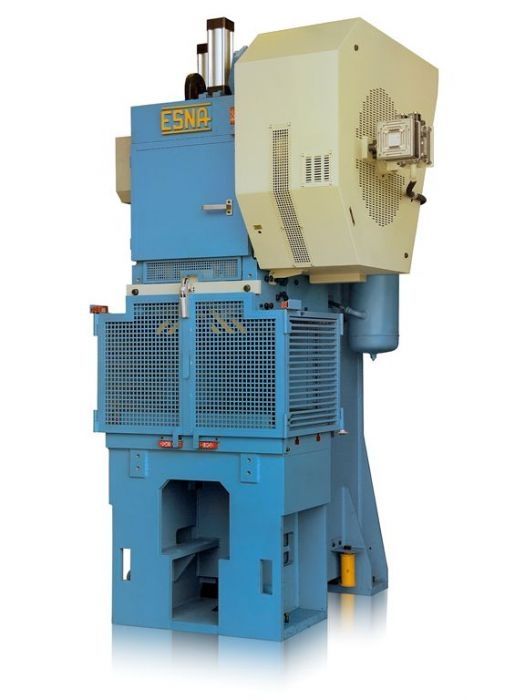

Mechanical C-frame press
max. 63 t | DJS63
ESNA PRENSAS
MECHANICAL PRESSE WITH DIRECT STEERING WHEEL
MONOLITHIC FRAME IN ELECTRO-WELDED STEEL
AIR ACTUATED CLUTCH/BRAKE COMBINED UNIT
WELDED STEEL SLIDE GUIDED BY 6 BRONZE GUIDES
CANKSHAFT MANUFACTURED IN FORGED STEEL
HYDRAULIC OVERLOAD SAFETY DEVICE
CE MARK ISSUED VY AUTHORIZED BODY
CHARACTERISTICS:
FORCE: 63 TM
STROKES PER MINUTE: 100
MAIN MOTOR POWER : 7,5 HP
ADJUSTABKLE STROKE: 0-110 MM
SLIDE ADJUSTMENT: 65 MM
GAP FRAME DEPTH : 260 MM
DISTANCE BETWEEN SHOULDERS: 440 MM
DISTANCE BED-SLICE FLANGE: 450 MM
SLIDE:
SLIDE FLANGE AREA : 460 X 360 MM
DIE HOLDER : 40 MM
TABLE:
AREA 900 X 520 M
BED HOLE 300 X 250 MM
MONOLITHIC FRAME IN ELECTRO-WELDED STEEL
AIR ACTUATED CLUTCH/BRAKE COMBINED UNIT
WELDED STEEL SLIDE GUIDED BY 6 BRONZE GUIDES
CANKSHAFT MANUFACTURED IN FORGED STEEL
HYDRAULIC OVERLOAD SAFETY DEVICE
CE MARK ISSUED VY AUTHORIZED BODY
CHARACTERISTICS:
FORCE: 63 TM
STROKES PER MINUTE: 100
MAIN MOTOR POWER : 7,5 HP
ADJUSTABKLE STROKE: 0-110 MM
SLIDE ADJUSTMENT: 65 MM
GAP FRAME DEPTH : 260 MM
DISTANCE BETWEEN SHOULDERS: 440 MM
DISTANCE BED-SLICE FLANGE: 450 MM
SLIDE:
SLIDE FLANGE AREA : 460 X 360 MM
DIE HOLDER : 40 MM
TABLE:
AREA 900 X 520 M
BED HOLE 300 X 250 MM
