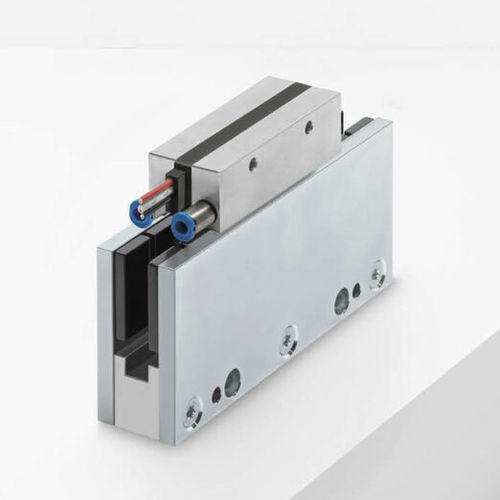

Ironless linear motor ILF+ series

3 Vair-cooledsmall

The ILF+ ironless linear motors are small size motors perfectly suited for very high dynamic and low moving mass applications. In addition, the total absence of force ripple ensures perfect speed stability and makes ILF+ suited for any scanning applications where speed control is a key specification. As for all ironless motors, ILF+ provides zero attraction force between the glider and the magnetic ways. To further increase the continuous force, ILF+ can be delivered with a forced air cooling option. Characteristics : - 3 standard models available - Designed for medium force - Small to medium sizes - Light moving parts - Suitable for air bearings - Forced air cooling option - No attraction force - No force ripple Main specifications : - Continuous force up to 69 N - Peak force up to 297 N - Low glider masses down to 100g
