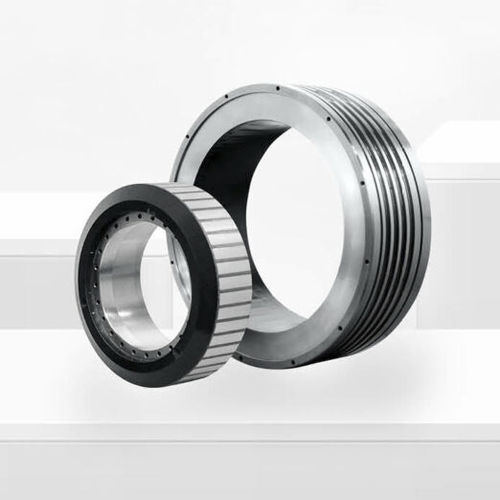

DC torque motor / synchronous / direct-drive / permanent magnet
TMK ETEL S.A.

{{requestButtons}}

Characteristics

  • AC/DC:

    DC

  • Type:

    synchronous

  • Other characteristics:

    direct-drive, permanent magnet, hollow-shaft, high-speed

  • Torque:

    Max.: 20,800 Nm (15,341.2927 ft.lb)

    Min.: 121 Nm (89.245 ft.lb)

  • Rotational speed:

    Max.: 5,450 rpm (34,243.36 rad.min-1)

    Min.: 674 rpm (4,234.87 rad.min-1)

  • Diameter:

    1,050 mm

Description

The TMK torque motor range is a unique design redefining the working range of torque motors in the industry. The advanced electromagnetic design of TMK motors allows them to reach speed levels that were totally unsuspected for torque motors. The TMK maximum speed range can reach 8 times the speed of similar size conventional torque motors. In addition, the continuous and peak torque is larger than similar size torque motors. As such, TMK is a unique revolutionary design that drastically changes the definition of high speed in the torque motor world.

Characteristics :
- 24 standard models available
- More torque and more speed compared to classical torque motors
- High motor robustness (fully encapsulated magnets)
- Very high peak torque
- TMK stator (up to Ø530 mm) compatible with the mechanical interface of the TMB series
- Water cooling channels
- 600 VDC bus voltage
- Very high peak torque
- Continuous torque increased by up to 30% vs TMB
- Up to 8 times speed increase vs TMB
- Field weakening compliant
- Compatible with IMTHP module for accurate thermal control
- Low torque ripple

Main specifications :
- External diameter up to 1050 mm
- Large hollow shaft up to 800 mm
- Peak torque up to 20700 Nm
- Speed up to 5170 rpm
