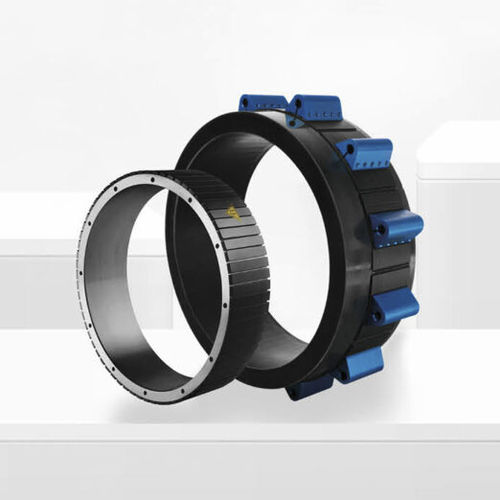

DC torque motor TML seriessynchronoushollow-shaftdirect-drive
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Configuration
- hollow-shaft
- Other characteristics
- direct-drive
- Torque
Min.: 24.5 Nm
(18.0703 ft.lb)Max.: 4,990 Nm
(3,680.4351 ft.lb)- Rotational speed
Min.: 110 rpm
(691.15 rad.min-1)Max.: 1,000 rpm
(6,283.19 rad.min-1)- Diameter
210 mm, 290 mm, 360 mm, 450 mm, 530 mm
(8.27 in, 11.42 in, 14.17 in, 17.72 in, 20.87 in)
Description
The TML torque motor is a low weight and low cost version of the famous TMB motor. This motor range is perfectly suited for applications that require the dynamic performance level of a direct drive torque motor while being less demanding in continuous torque. The TML is used in applications where water cooling is not requested. TML motors are designed with specific fixing lugs to be easily assembled into the final machine structure.
Characteristics :
- 25 standard models available
- Low cost
- No water cooling option
- 600 VDC bus voltage
- Very high peak torque
- Compatible with IMTHP module for accurate thermal control
- Low torque ripple
Main specifications :
- External diameters up to 581 mm
- Large hollow shaft up to 420 mm
- Peak torque up to 4990 Nm
- Speed up to 1000 rpm
