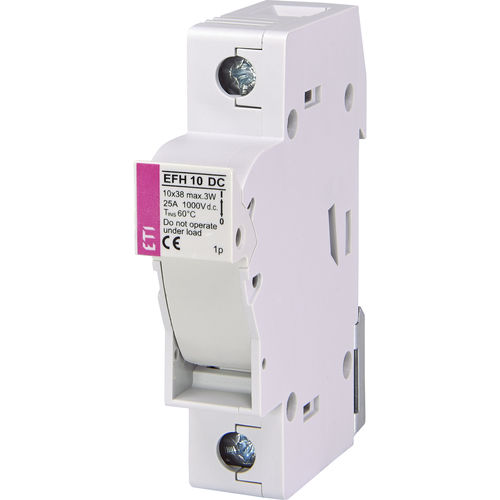

Fused disconnector 002540201

low-voltagefor photovoltaic applications

The ETI GROUP's EFH 10 DC series fuse holders are mostly used in photovoltaic systems. They are completely IEC 60947-1, IEC 60947-3, UL 4248-1, UL 4248-18, and UL 486E compliant. All plastic parts are highly temperature-resistant. The drawer guarantees that there is no contact of the fuse link and housing. All contacts are silver plated. The entire design is IP20 protection standardized, and meant for DIN 35 mm rail mounting (DIN EN60715). Also, a LED indicator for fuse-link operational status check is available, if requested. The internal circuit has resistance of 2 MOhm, guaranteeing minimal dissipation. These fuse holders feature operating voltages from 50 to 1000 V DC, with ON /OFF sealing positions. Per customer specification and due to a modular design, assembly of multi-pole versions is possible.
