Anechoic test chamber AMS-8100

antenna measurementcompact

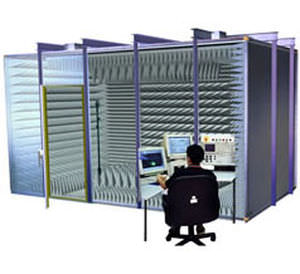

ETS-Lindgren's AMS-8100 Antenna Measurement System is a compact rectangular test chamber designed for test and measurement of wireless devices. The AMS-8100 is designed for test and measurement applications of small antenna products over the frequency range from 800 MHz to 6 GHz. The operating frequencies can be extended to higher frequencies if required. The system is designed for passive testing of antennas including low-directivity communication antennas used in various devices such as Wi-Fi interfaces and mobile handsets. 5G FR1 Over-The-Air (OTA) test solutions are now available! ETS-Lindgren offers a turnkey package which will enable support for 5GNR SISO non-standalone [NSA] and/or standalone [SA] testing in the FR1 band. Key Features Efficient Over-The-Air (OTA) Measurement for Wireless Devices Passive Antenna Measurements Frequency Range: 800 MHz to 6 GHz (Standard) 700 MHz to 10 GHz (Optional) Modular High Performance Shielded System Multi-Axis Positioning System (MAPS) for High Resolution 3D Pattern Testing Path Length 2.74 m Easy Calibration by User EMQuest Data Acquisition and Analysis Software Rectangular Chamber The AMS-8100 is a rectangular chamber; it is fully-lined with anechoic absorber and designed to provide far-field measurements at a nominal separation distance of 2.74 m (9 ft) . The AMS-8100 includes an ETS-Lindgren 3164-08 open-boundary quad-ridged horn antenna and associated RF-cabling. Extension to higher frequencies is possible by adding optional antennas. Extension of the lower frequency range is possible using other ETS-Lindgren Antenna Measurement Systems and configurations.
