Compact Power Units
Application:

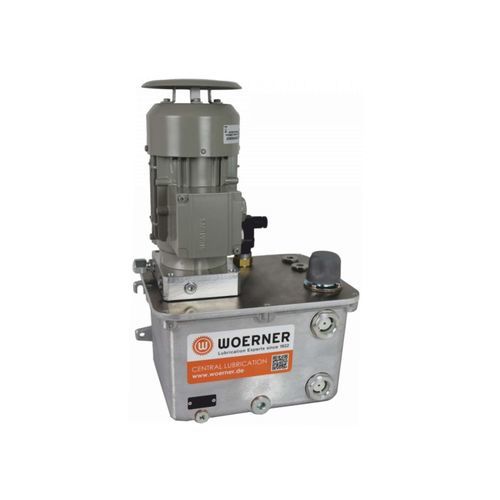

WOERNER small units can be used to produce consumer lubrication units as well as oil circulation lubrication systems. A typical small unit consists of a tank, gear pump unit, pressure relief valve, line filter, manometer and level control.
Function:
A gear pump unit delivers the lubricant from the tank to the lubrication point. The unit is protected from overload by a pressure relief valve. A pressure display and a level window for visual monitoring are fitted as standard, although electrical level control is also possible. The medium can optionally also be filtered by a line filter.
A part of our product range is also suitable and certificated for hazardous areas (ATEX). Please contact our technical sales team for more information.
GFU-B
Pump unit
Medium: oil
Dosing volume in l/min: 0,06...1,00
max. delivery pressure in bar: 32
Tank size in l: 5 / 10
Drive: electric
